Er:Yb:Glass+Co:MgAl2O4


  Applications Laser rangefinder
    Remote sensing
    3D scanning
    Weather observing and controlling
    Pollution monitoring system

  Features Widely used in 1.5um eye-safe lasers, laser ranging, telemetry et al. Well acknowledge in output 1535nm laser, pumped by 940nm LD, where Er:Yb:Glass worked as stimulate material, and Co:MgAl2O4 as passive Q-switching.

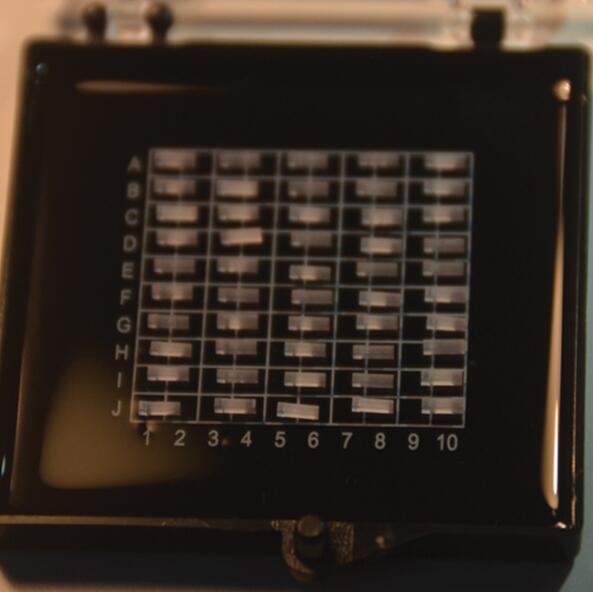

    We could provide Er:Yb:Glass bond with Co:MgAl2O4 combo module, which could increase the output laser quality, and more easy to handle.


Main Specification Material: Er:Yb:Glass+Co:MgAl2O4 module
Dimension 0.9*0.9*3.7mm
Pumping 915-955nm
Output 1535-1540nm
Frequency 1hZ or 100hZ or 1000hZ
