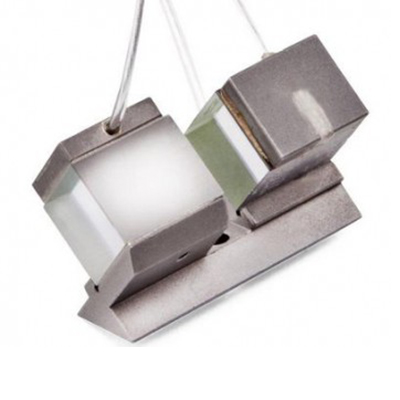

RTP Pockels Cell Q-switch


    The Laserton RTP Pockels Cells are based on two RTP elements in a temperature compensating design that enables the usage of these devices within a wide temperature range from -40 °C up to +70 °C.
  Applications  Commonly applied in Q switches & pulse pickers
     Used as E-O modulator
     Used as attenuators & deflectors

  Features  Low half-wave voltage for EO Cells to enable
a compact design

     Excellent performance under extreme temperature from -40 °C to +70 °C
     High laser-induced damage threshold (600MW/cm2, at 1064 nm, 10 ns pulse 10Hz)
     Minimal piezoelectric ringing effect, compatible for 1 MHz repetition rate.
     Non-hygroscopic, easy to handle.
     Wide optical bandwidth  from 500nm to 3000nm for electro-optics applications
     Low insertion loss
     High extinction ratio >200:1

  Main Specification Operational range 500-3000 nm
  Transmission @ 1064 nm > 98.5%
  Half wave voltage
  Extinction ratio 30dB (20dB optional)
  Acceptance angle < 4 deg.
  Standard AR coating @ 1064 nm R < 0.1%
  Damage threshold Up to 600MW/cm2, at 1064 nm, 10 ns pulse 10Hz

ITEM CUT ANGLE SIZE/mm HALF-WAVE VOLTAGE/V LIDT/@1064nm
R-Q3305X X-CUT 3×3×(5+5) 2400 600MW/cm2
R-Q3305Y Y-CUT 3×3×(5+5) 2000 600MW/cm2
R-Q3310X X-CUT 3×3×(10+10) 1200 600MW/cm2
R-Q3310Y Y-CUT 3×3×(10+10) 1000 600MW/cm2
R-Q4405X X-CUT 4×4×(5+5) 3200 600MW/cm2
R-Q4405Y Y-CUT 4×4×(5+5) 2700 600MW/cm2
R-Q4410X X-CUT 4×4×(10+10) 1600 600MW/cm2
R-Q4410Y Y-CUT 4×4×(10+10) 1350 600MW/cm2
R-Q7705X X-CUT 7×7×(5+5) 5600 600MW/cm2
R-Q7705Y Y-CUT 7×7×(5+5) 4600 600MW/cm2
R-Q7710X X-CUT 7×7×(10+10) 2800 600MW/cm2
R-Q7710Y Y-CUT 7×7×(10+10) 2300 600MW/cm2
R-Q8805X X-CUT 8×8×(5+5) 6400 600MW/cm2
R-Q8805Y Y-CUT 8×8×(5+5) 5400 600MW/cm2
R-Q8810X X-CUT 8×8×(10+10) 3200 600MW/cm2
