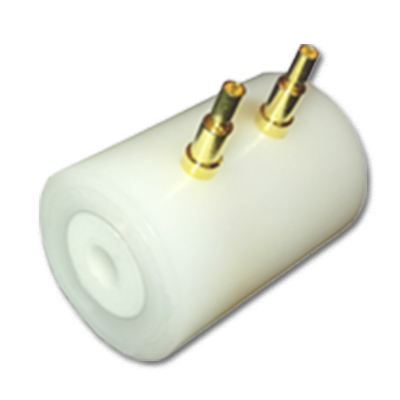

KD*P DKDP Electro-optical Cell Q-switch


    DKDP (KD*P) based Pockels cells are used for Q-switching applications from the 400 nm to about 1.1 μm. Most of commercial flashlamp pumped Nd:YAG lasers and low repetition rate DPSS Nd:YAG lasers are equipped with DKDP (KD*P) based Pockels cells for laser cavity Q-switching.
  Applications  Pulsed laser system
     Medical laser system
     Aesthetic laser system

  Features  High extinction ratio
     Low insertion loss
     High laser damage threshold
     Low capacitance
     Low current leakage


Main Specification Transmission Range 400 nm to 1100 nm
Clear Aperture 90%
Insertion Loss <2%
Coating AR@1064nm(R<0.2%), or customised upon request
Damage threshold 1GW/cm² 10ns 10Hz at 1064nm
Quarter-wave voltage ~3400V

Item Clear Aperture Size/mm Quarter-wave Voltage/V Extinction Ratio (Cross Polarizers) Extinction Ratio (Parallel Polarizers) Capacitance Insertion Loss LIDT/
@1064nm
D-Q08A 8 Φ19×28 ~3400V >2000:1 >1500:1 <6pF <2% 10 J/cm2
D-Q10A 10 Φ25.4×39 ~3400V >2000:1 >1500:1 <6pF <2% 10 J/cm2
D-Q12A 12 Φ25.4×44 ~3400V >2000:1 >1500:1 <6pF <2% 10 J/cm2
D-Q15A 15 Φ30×44 ~3400V >2000:1 >1500:1 <8pF <2% 10 J/cm2
D-Q19A 19 Φ33×48 ~3400V >1500:1 >1000:1 <12pF <2% 10 J/cm2
D-Q30A 30 Φ50×70 ~3400V >1500:1 >1000:1 <30pF <2% 10 J/cm2
