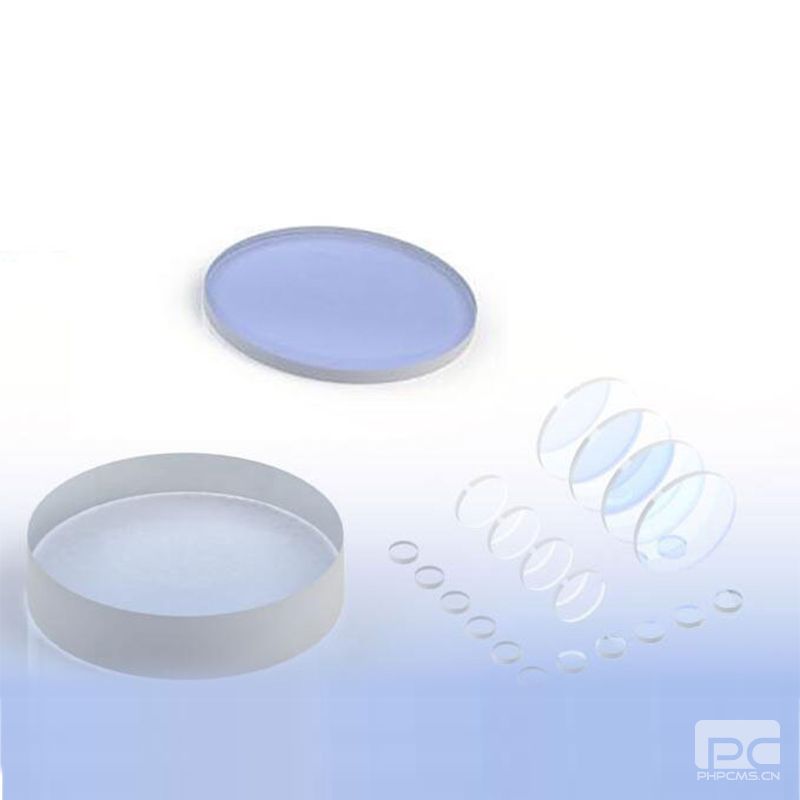

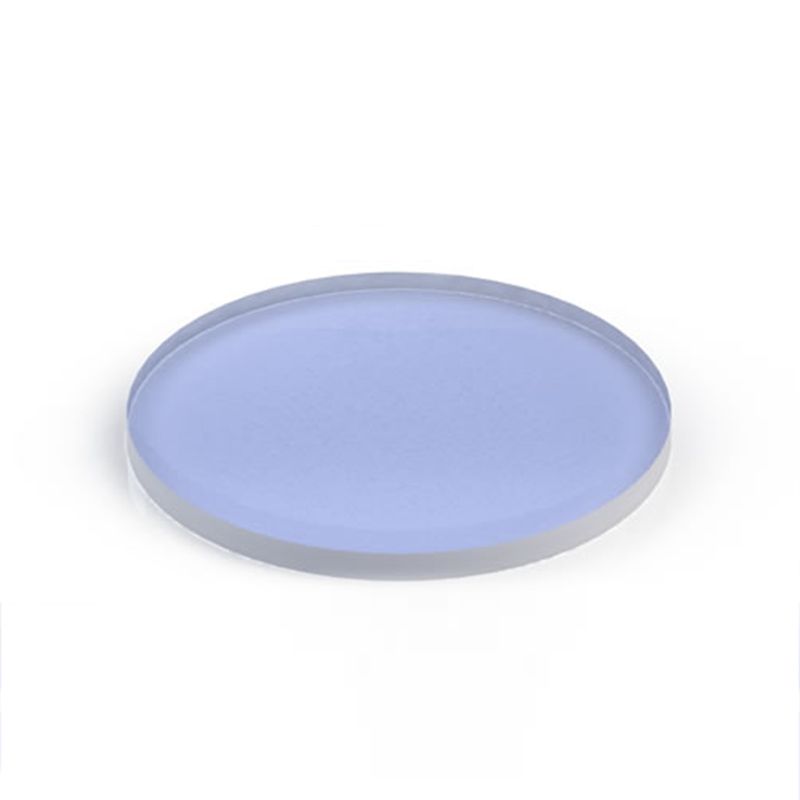

Material | BK7 Grade A optical glass |
Size | 3mm to 735mm |
Shape | Round Window, Brewster Window, Anamorphic Window, Stepped window et al. |
Dimension Tolerance | +0.0/-0.2mm |
Thickness Tolerance | ±0.2mm |
Clear Aperture | >90% |
Parallelism | Standard: 1 arc min High Precision: 10 arc sec |
Surface Flatness | λ/40 – λ/8 |
Surface Quality | Standard: 60/40 High Precision: 20/10 |
Wavefront Distortion | Standard: λ@633nm per 25mm High Precision: λ/10@633nm per 25mm |
Chamfer | Protected <0.5mm×45deg |
Coating | AR or custmer design |
Standard | Precision | ||||

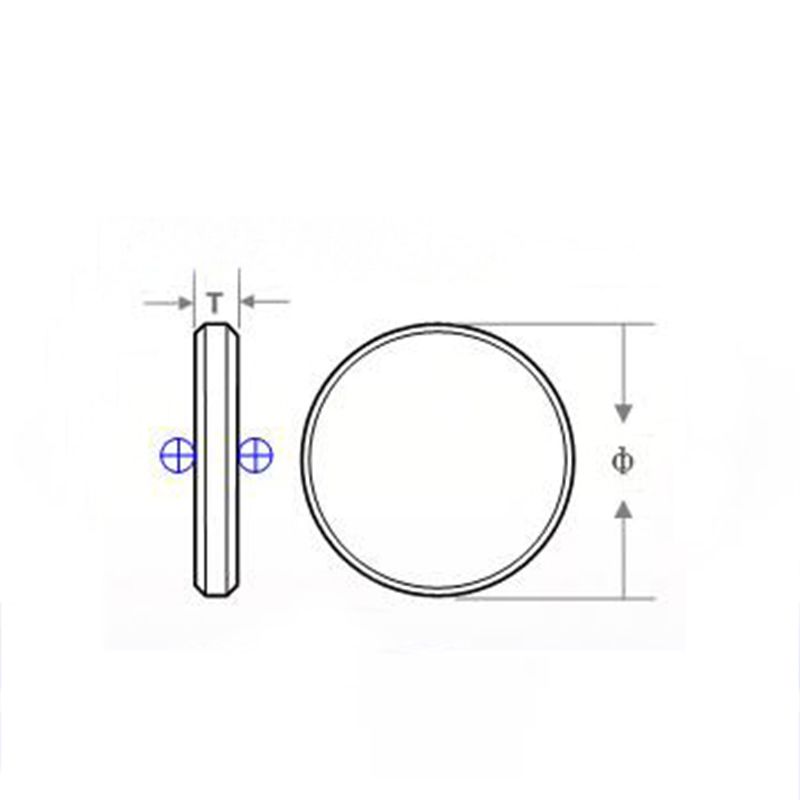

Part No. | ø(mm) | T(mm) | Part No. | ø(mm) | T(mm) |
WIN-1S10 | 10.00 | 3.00 | WIN-1P10 | 10.00 | 6.00 |
WIN-1S12 | 12.70 | 3.00 | WIN-1P12 | 12.70 | 6.00 |
WIN-1S15 | 15.00 | 3.00 | WIN-1P15 | 15.00 | 6.00 |
WIN-1S20 | 20.00 | 3.00 | WIN-1P20 | 20.00 | 6.00 |
WIN-1S25 | 25.40 | 3.00 | WIN-1P25 | 25.40 | 6.35 |
WIN-1S30 | 30.00 | 3.00 | WIN-1P30 | 30.00 | 6.35 |
WIN-1S50 | 50.80 | 6.35 | WIN-1P50 | 50.80 | 10.00 |
Other material or size are also available upon request. |
