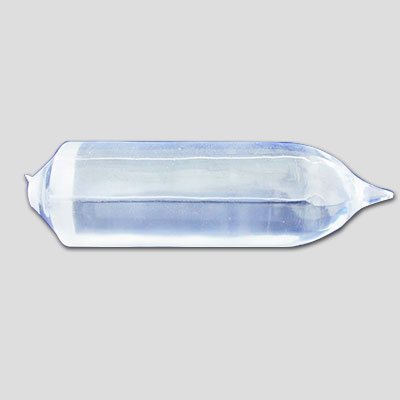

Yb: YAG Laser Crystal


  Applications Generate 1.03µm laser output pumped at 0.94µm
    Can be used in high power diode-pumped lasers and others potential applications.

  Features Ideal for diode pumping;
    Very low frictional heating, less than 11%
    Very high slope efficiency
    Broad absorption bands, about 8nm@940nm
    No excited-state absorption or up-conversion
    Conveniently pumped by reliable InGaAs diodes at 940nm(or 970nm)
    High thermal conductivity and large mechanical strength
    High optical quality


Main Specification Yb-dopant concentration 0.2%---30% at% (Tolerance 10% of concentration)
Diameter 20 mm (+0.0/ -0.025mm)
Length 1~70mm, (+/-0.05mm)
Dimensional Tolerance +0/-0.05 mm Length  ±0.1 mm

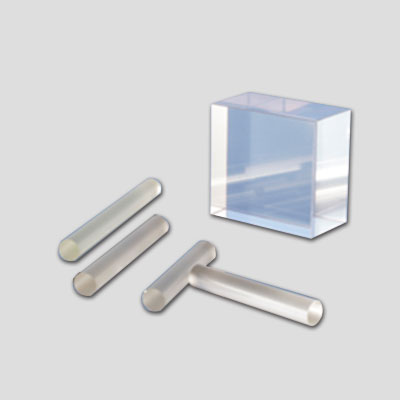

Rod size Diameter 2~20mm, Length 5~150mm
Upon request of customer

Coating a) AR @ 940nm or HR @940nm
b) AR @ 1053nm or AR @1030nm or HR @1053nm

Barrel finish Ground Finish: 400# Grit
Orientation [111]
Wavefront Distortion <λ/10 per inch at 632.8nm for <7mm
Surface quality  Scratch/Dig 10-5(MIL-PRF-13830B)
Parallelism < 10 arc sec
Perpendicularity < 5 arc min
Surface flatness <λ/10 at 632.8nm
Clear aperture Central 95%
Chamfer 0.15×45°
Physical and Chemical Properties Chemical Formula Yb:Y3Al5O12
Crystal Structure Cubic
Lattice Constants 12.01Ä
Melting Point 1970°C
Density 4.56 g/cm3
Mohs Hardness 8.5
Refractive Index 1.82
Thermal Expansion Coefficient 7.8×10-6 /K , [111], 0-250°C
Thermal Conductivity 14 W.s /m /K @ 20°C
Optical properties Lasing Wavelength 1030 nm
Laser Transition 2F5/22F7/2
Photon Energy 1.93×10-19J (@1030nm)
Scattering 1.82
Extinction Ratio >=28 dB
Emission Cross Section 2.0×10-20 cm2
Fluorescent Lifetime 1.2ms
Loss Coefficient 0.003 cm-1
Pump Wavelength 940 nm
Absorption band at pump wavelength 10 nm
Diode pump band 940nm or 970nm
Emission Linewidth 9nm
Thermal Optical Coefficient 9×10-6/
Single pass loss 3×10-3 cm-1
