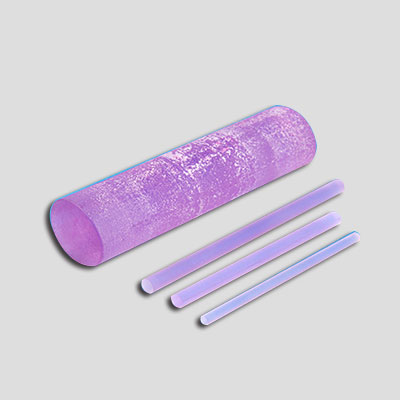

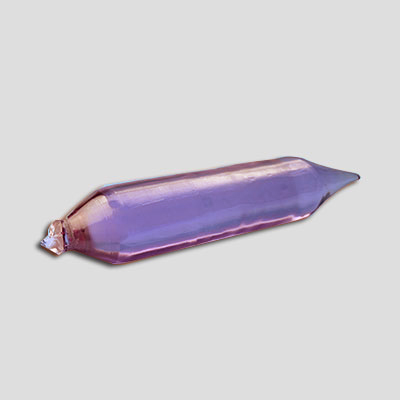

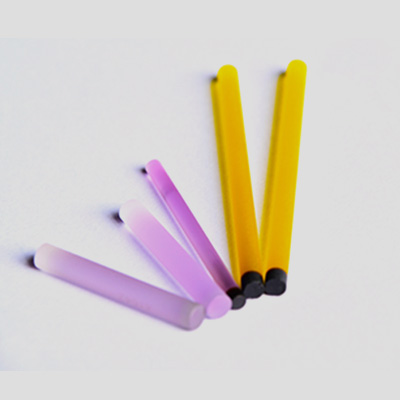

Nd:YAG Laser Rod



  Applications Nd:YAG can produce blue laser with the frequency-doubling of 946nm
    Nd:YAG can be operated in a very high power laser up to kw level
    Nd:YAG can be Q-switched with Cr4+YAG directly
    Due to the cubic symmetry and high quality, Nd:YAG is easy to operate with TEM00 mode

  Features Its laser parameters are a good compromise between the strengths and weaknesses of its competition.
    Compared with others laser crystals, its fluorescence lifetime is twice more than Nd:YVO4, and thermal conductivity is also better.


Main Specification Nd dopant concentration
Dopant tolerance
0.3~2.0(±0.1)atm%
Diameter 3 ~ 14mm
Length 1~ 160mm
Coating HR-Coating: R>99.8%@1064nm and R<5%@808nm
AR-Coating (Single layer MgF2): R<0.25% per surface (@1064nm)
Other HR coating or wavelengths are also available

Orientation <111> crystalline direction (+/-5)
Wavefront Distortion <λ/10 per inch at 632.8nm for 3 ~7mm
>λ/10 per inch at 632.8nm for >=7mm

Surface quality  Scratch/Dig < 20/10 Scratch/Dig per MIL-O-1380A
Parallelism < 10 arc sec
Perpendicularity < 5 arc min
Surface flatness <λ/10 at 632.8nm
Clear aperture Central 95%
Chamfer 0.15x45°
Damage Threshold >500MW/cm2
Physical and Chemical Properties Chemical Formula Nd:Y3A15O12
Lattice Constants 12.01Å
Dimensional tolerances +0/-0.05 mm, Length ±0.1 mm
Concentration ~ 1.2 x 1020 cm-3
Melting Point 1970°C (2240K)
Density 4.56 g/cm3
Mohs Hardness 8.5
Refractive Index 1.82
Thermal Expansion Coefficient 7.8 x 10-6 /K [111], 0 - 250 °C
Thermal Conductivity 14 W/m /K @20 °C, 10.5 W /m /K @100 °C
Optical properties Lasing Wavelength 1064 nm
Extinction Ratio >28 dB
Stimulated Emission Cross Section 2.8×10-19 cm-2
Relaxation Time of Terminal Lasing Level 30 ns
Radiative Lifetime 550 ms
Spontaneous Fluorescence 230 ms
Loss Coefficient 0.003 cm-1 @ 1064 nm
Effective Emission Cross Section 2.8 x 10-19 cm2
Pump Wavelength 807.5 nm
Absorption band at pump wavelength 1 nm
Linewidth 0.6 nm
Polarized Laser Emission Unpolarized
Thermal Birefringence High
